Metal Roofing Sheets and Wall
DURASHINE® roof and wall sheets are manufactured from zinc / aluminium alloy coated high tensile steel.

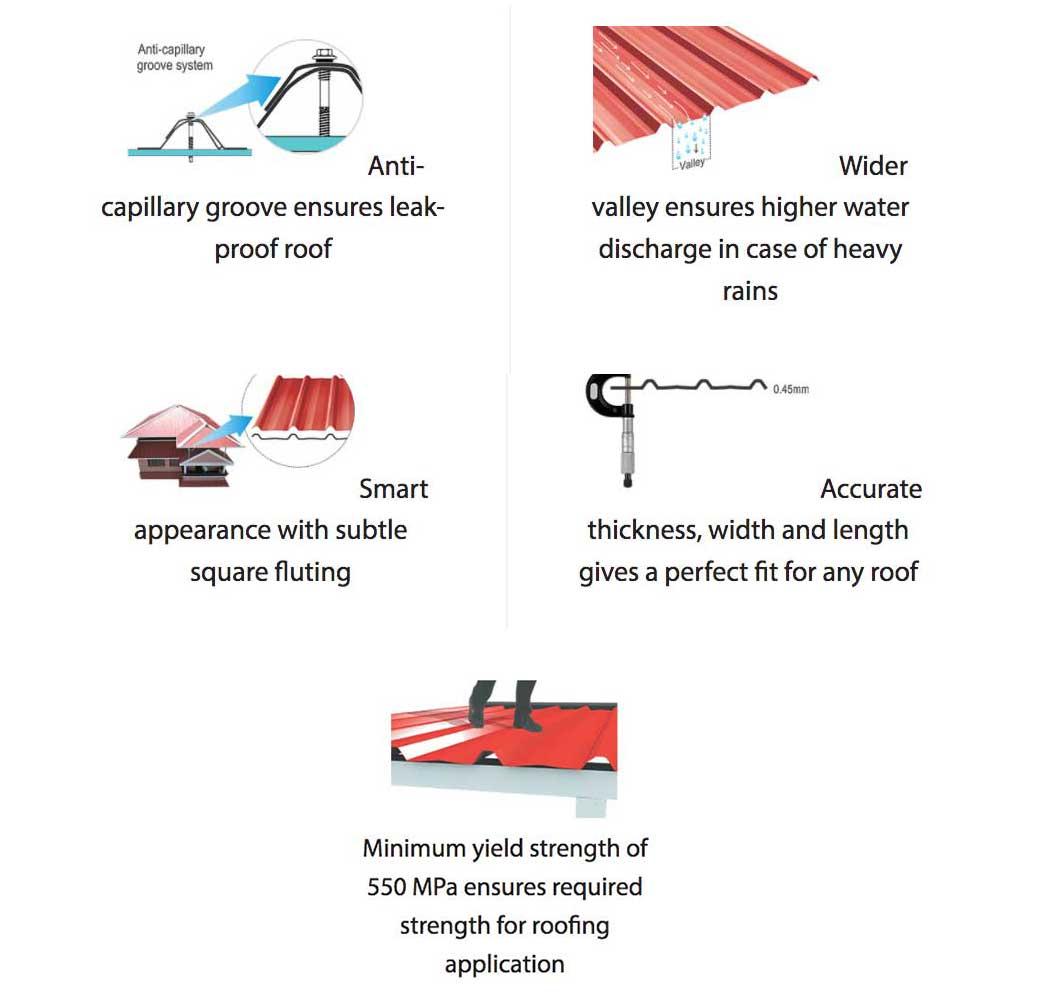

What the profile is designed to do
Built for the weather it has to stand up to
Long Lasting
Zinc-aluminium alloy coated steel that keeps its finish through the North East’s rain and humidity.
Strong and Lightweight
High tensile steel carries the load with far less weight, so the supporting structure can be lighter too.
Better Corrosion Resistant
100% AL-Zn coating resists corrosion for far longer than a plain zinc coated sheet in the same environment.
Better Thermal Efficiency
Reflects more of the sun’s heat, so the space underneath stays measurably cooler.
Aesthetically Appealing
A clean, consistent profile in five standard colours that suits a home as readily as a factory.
Specifications
The same sheet is rolled to two profiles — one for roofs, one for walls. The figures below are for a single sheet.
| Specification | DURASHINE® Roof | DURASHINE® Wall |
|---|---|---|
| Total painted thickness (mm) | 0.37 / 0.47 / 0.52 / 0.62 | 0.37 / 0.47 / 0.52 / 0.62 |
| Sheet length* (mm) | 2440 (8 ft), 3050 (10 ft), 3660 (12 ft), 4270 (14 ft), 4880 (16 ft) | 2440 (8 ft), 3050 (10 ft), 3660 (12 ft), 4270 (14 ft) |
| Effective cover width (mm) | Nominal 1015 | Nominal 1110 |
| Overall width (mm) | Nominal 1072 | Nominal 1150 |
| Rib height (mm) | 28.5 | 11.6 |
| Min. roof slope (degree) | 3 | — |

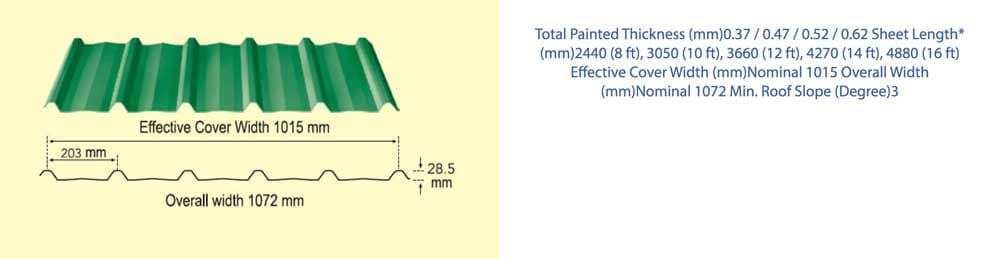

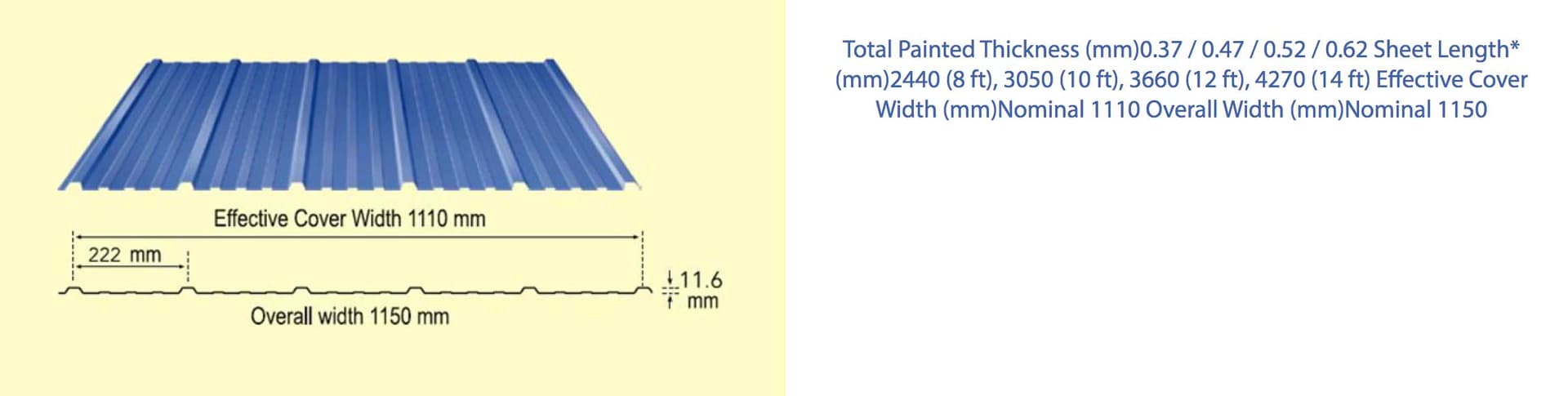

Profile drawings

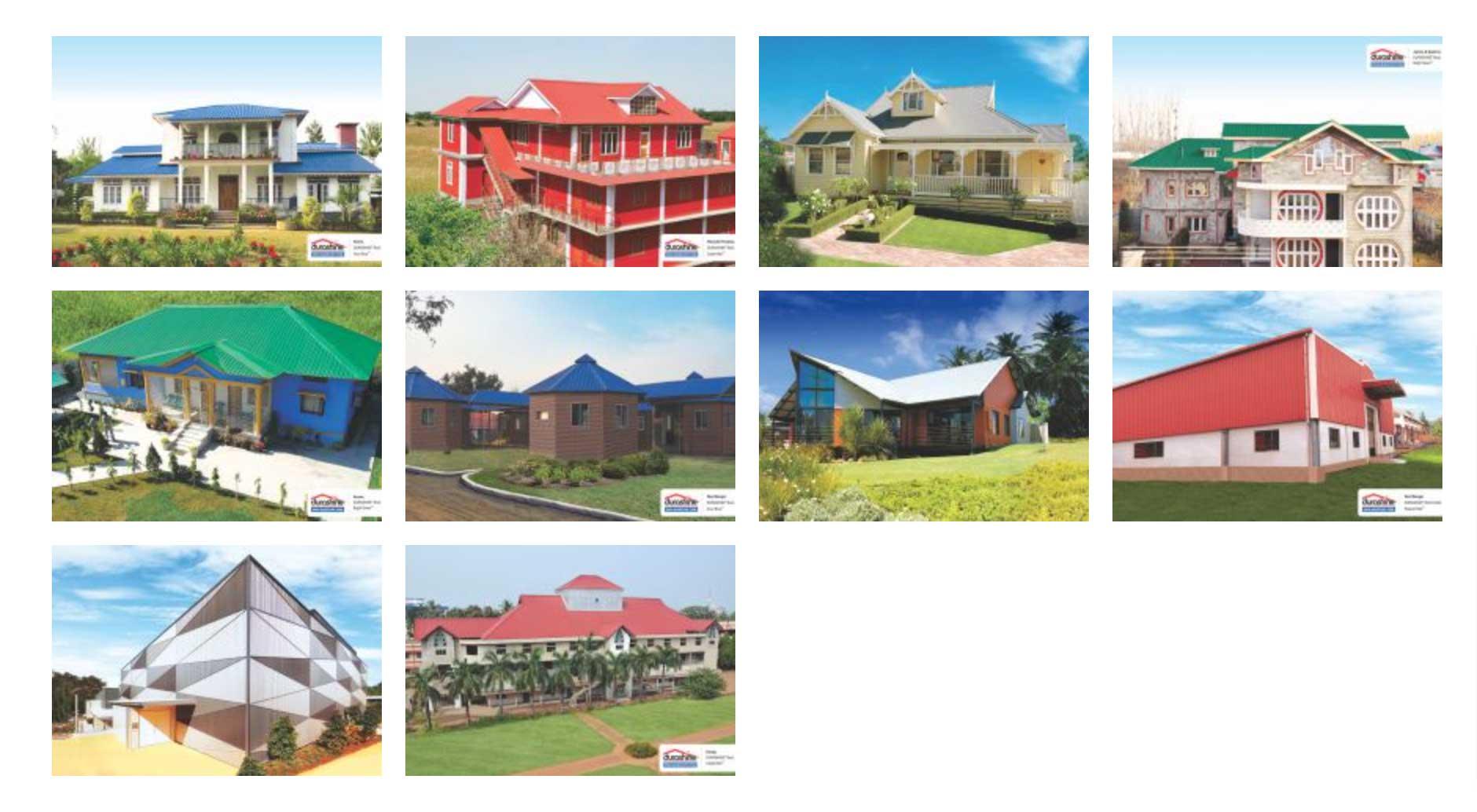

Applications
Inspiring Colour Range
DURASHINE® roof and wall sheets are available in five standard colours. Ask us for a physical sample before you choose.
Download your free report
What every business owner must know before choosing a roofing and walling system.
Get a quotation for roof and wall sheets
Tell us the roof area or the number of sheets, the thickness and the colour you want.
