Satin Silver
Cool roof and wall sheets.
Overview
Aluminium-zinc alloy, two to three times the life
Tata BlueScope Steel offers Satin Silver sheets coated with 55% aluminium-zinc alloy that last up to two to three times longer than zinc coated steel sheets in a similar environment.
The blending of aluminium with zinc gives a protective coating with excellent lustre and high strength. The alloy coating provides superior corrosion resistance and better thermal efficiency than other building materials. Satin Silver sheets are light-weight and require a lesser amount of framing in the roofing design.

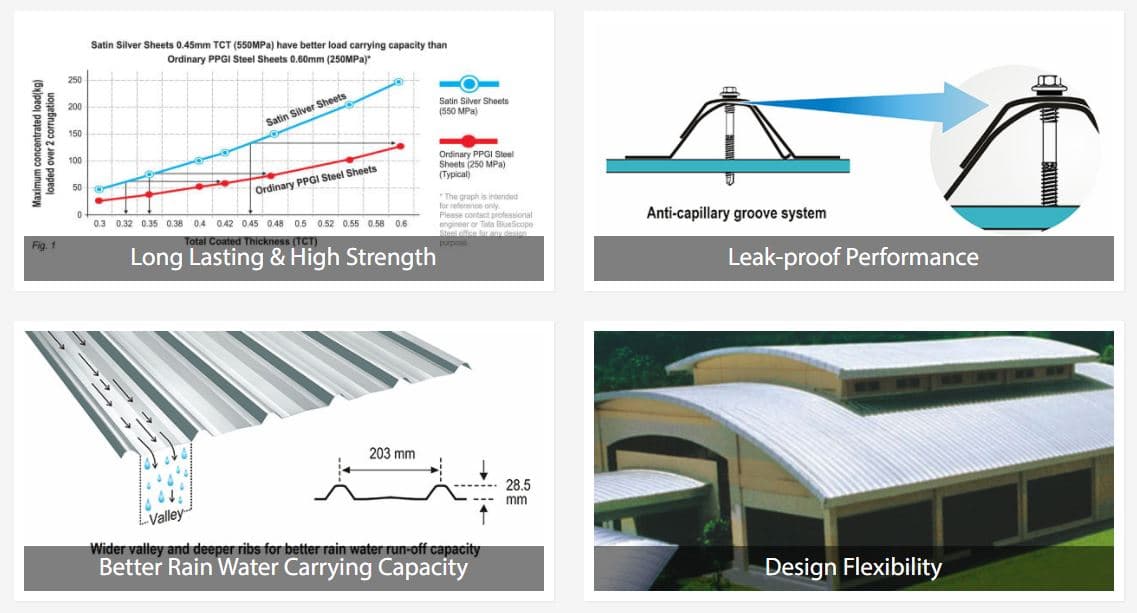

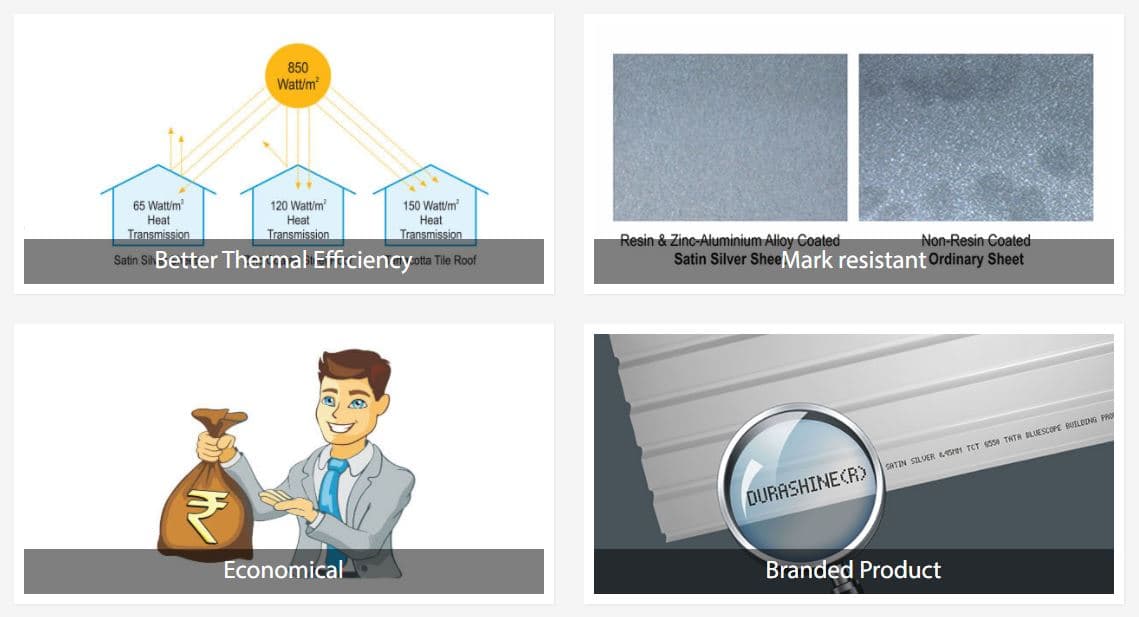

Benefits of Satin Silver
Satin Silver Roof — specifications
| Specification | Value |
|---|---|
| Total coated thickness (mm) | 0.35 / 0.45 / 0.50 / 0.60 |
| Sheet length* (mm) | 2440 (8 ft), 3050 (10 ft), 3660 (12 ft), 4270 (14 ft), 4880 (16 ft) |
| Effective cover width (mm) | Nominal 1015 |
| Overall width (mm) | Nominal 1072 |
| Minimum roof slope (degree) | 3 |
Maximum support spacing (mm)
For 0.45 mm TCT. Terms and conditions applicable.
| Type of span | Roof | Wall |
|---|---|---|
| Single span | 950 | 1700 |
| End span | 1200 | 2450 |
| Internal span | 1750 | 2850 |

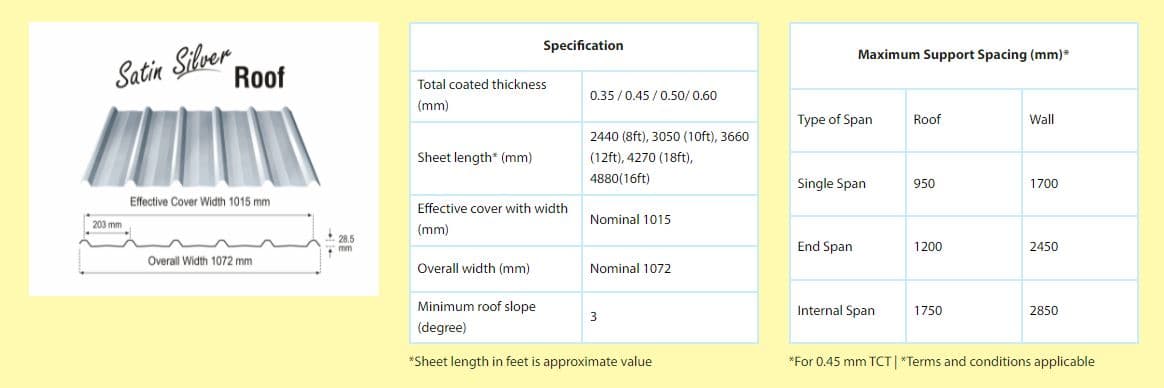

Profile drawing
